Designed for standard gauge rolling stock and locomotives. Suitable for both ground and raised level tracks.

Designed for the serious 5" Gauge fine scale modeller who uses design references which are featured in the GL5 magazine Turnout and the writing and products of Doug Hewson and Dave Noble to name but a few. Suitable for ground and raised level tracks.

The sleepers are injection moulded from high grade engineering polymers, making them extremely durable, rot, frost and UV resistant.
The system is very quick and easy to assemble, no drilling is required. The sleepers are moulded with pilot holes for the screws, plus automatic gauge widening built-in.

The sleepers have hollow ribbed undersides to allow the ballast to enter, making an extremely stable base.

The following rail fixing options can be used with this sleeper:

• Screw Fit Chair to suit 16mm (5/8" x 5/8") flat bottom aluminium rail or (21mm) 2lb yard steel or aluminium rail.
• Clip Fit Chair to suit 16mm (5/8" x 5/8") flat bottom aluminium rail.

This sleeper is also available as part of a kit. Available in 1.25m (4ft), 2.5m (8ft) and 10m (32ft) lengths. The shorter lengths are ideal for standing the loco on while building, or indeed displaying the finished model. The 10m Kits are ideal for laying in the garden or for use as a portable track.

Both systems are easy to assemble and benefit from selectable gauge widening, the advantage of the Clip Fit chairs, is that no screws are required, just slide the chairs onto the rails, and push into the sleepers.

Click here for more information on how gauge widening is achieved using the 'PNP Railways Track System’.

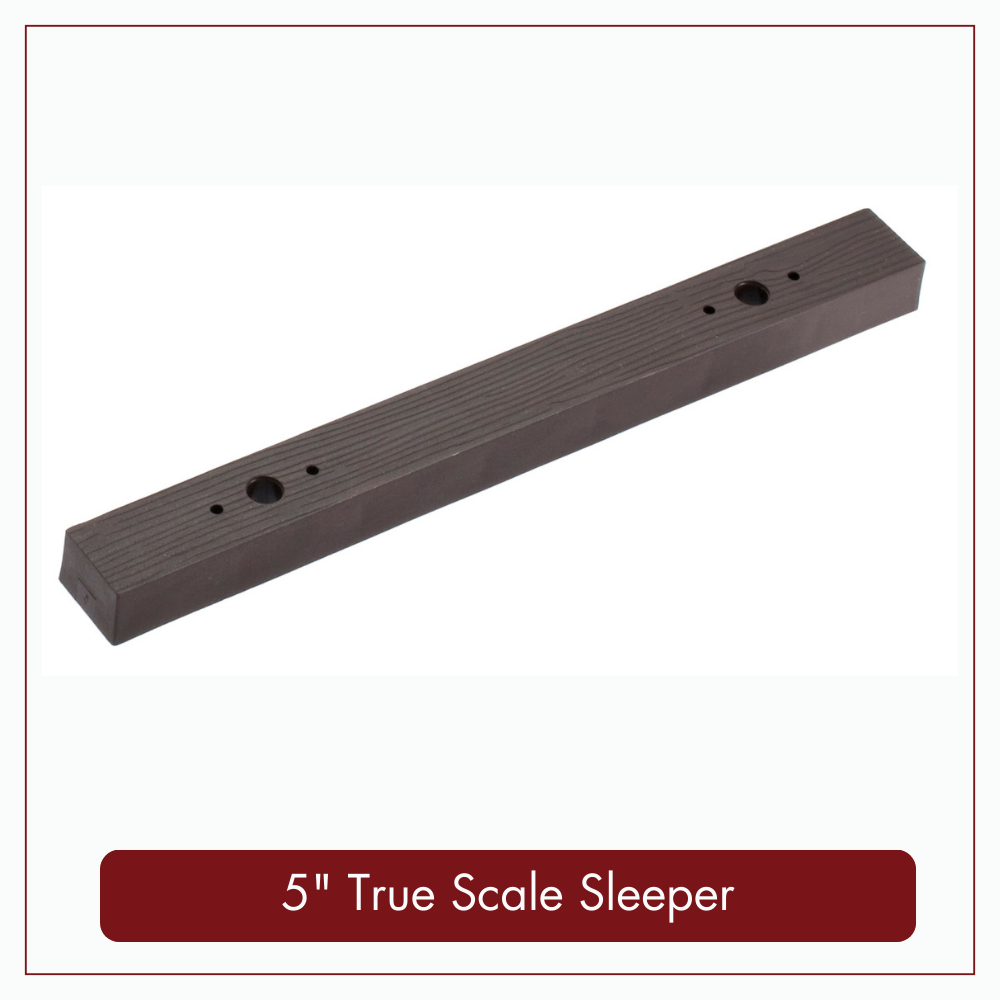

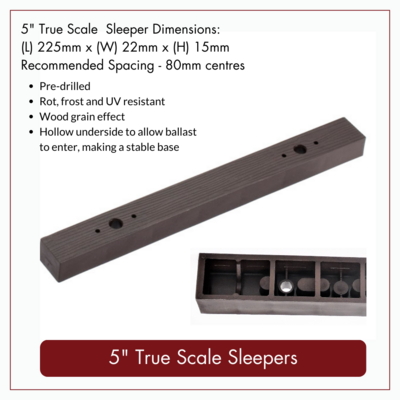

5" True Scale Sleeper Dimensions:
(L) 225mm x (W) 22mm x (H) 15mm

Recommended Sleeper Spacing:
80mm centres

All plastic sleepers and rail fixings in the PNP Railways range are manufactured from high-grade engineering polymers that are extremely durable and resistant to rot, frost, and UV radiation. UV stabilizers are added to the base polymers to help prevent UV radiation degradation and extend the life of the products.
