Sole Plates
SKU PNR-3L
£0.27
Bulk pricing available for quantities of 301 units or more
For 7¼" & 10¼" Gauge Railway Construction
Sole Plates
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 301 items | £0.26 | 4% off |
| 601 items | £0.25 | 7% off |
| 1001 items | £0.24 | 11% off |
Save this product for later
Sole Plates
Product Details
Brand: PNP Railways
The sole plate is placed underneath the rails and its purpose is to distribute the weight of the tracks and trains over a larger area. It also supports the rail fixing by keeping them in place.
PNP Railways offer 3 types of Sole Plates
Sole Plate with 3 degree Cant
A rail sole plate with a 3-degree cant (or inclination) is used in to provide a specific alignment and geometry for the rail. The primary purpose of introducing a cant is to create a superelevation or banking effect on the track, which helps to counteract the centrifugal forces that occur when a train negotiates a curve.
The PNP Railways sole plate with 3 degree cant will enable the rail to match the angle of the wheel coning on the wheels of locomotives and rolling stock in 7¼" and 10¼" gauge. The angle should improve running by minimizing flange contact (squealing) and hunting (side to side movement).

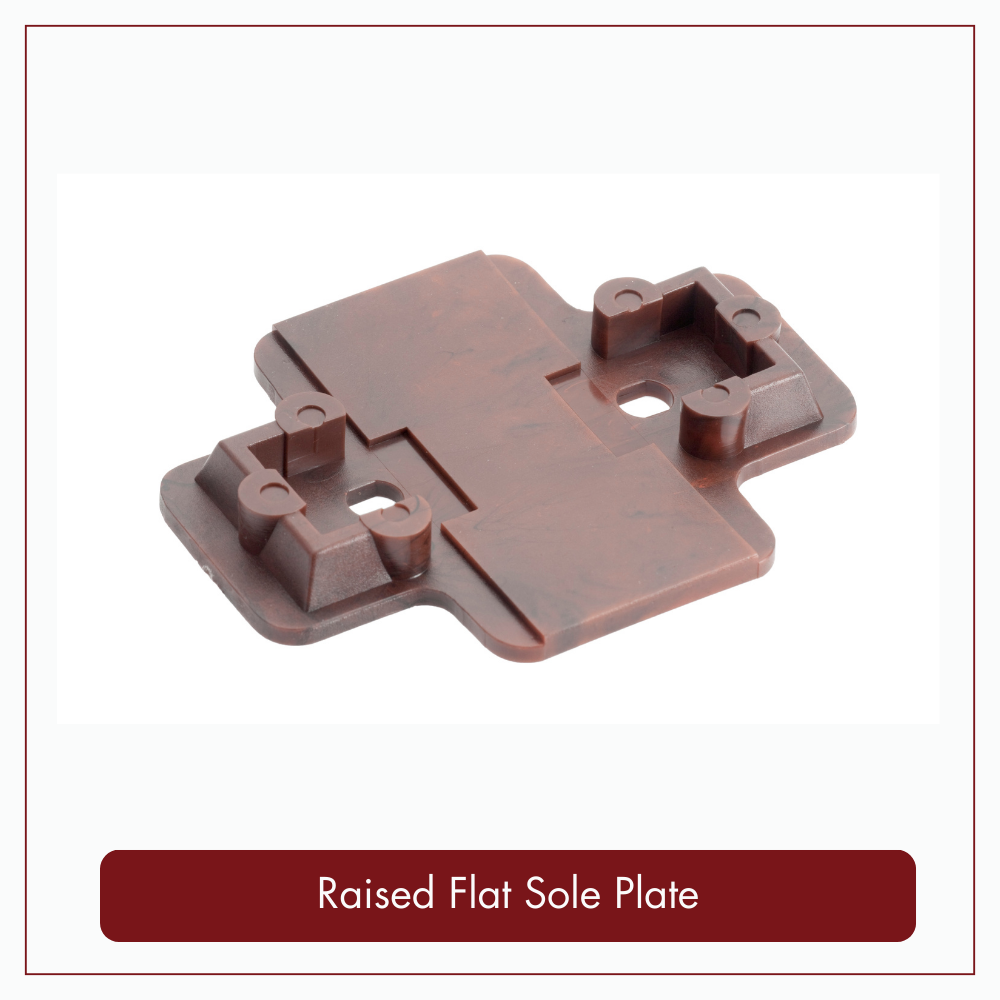

Raised Sole Plate
The PNP Railways Raised Panel Sole Plate offers a superior solution for accommodating thinner foot profile rails. With its innovative design, this sole plate effectively prevents the clips from tipping at an adverse angle, ensuring a secure and stable rail installation.
Standard Sole Plate
Designed for precision and stability, the PNP Railways Standard Sole Plate features a flat base that allows the rail to sit perfectly flat. This crucial component ensures optimal contact between the rail and the sole plate, promoting a smooth and reliable railway system.
At PNP Railways, our sole plates are meticulously designed to optimize performance and ensure a secure fit for your rail system. Manufactured from a specially selected plastic with slightly softer characteristics, our sole plates offer unique advantages that go beyond conventional designs.
One notable benefit is the cushioning effect provided by our sole plates. With their soft yet durable composition, they effectively absorb impacts at the rail-head, minimizing the potential for damage and wear. This cushioning feature not only extends the lifespan of your rails but also contributes to a smoother and more comfortable ride for your trains.
Furthermore, our sole plates are equipped with integrated stops. These stops are strategically moulded into the sole plate, providing a precise and secure fit for the rail clip. This innovative design ensures that the rail remains firmly in place, even under demanding operating conditions, preventing any undesirable movement or displacement.
All plastic sleepers and rail fixings in the PNP Railways range are manufactured from high-grade engineering polymers that are extremely durable and resistant to rot, frost, and UV radiation. UV stabilizers are added to the base polymers to help prevent UV radiation degradation and extend the life of the products.
