5" Gauge Pedestal Bearings

Name: 5" Gauge Pedestal Bearings
Brand: PNP Railways
SKU: 00031
Price: 21.67 GBP
Availability: InStock

SKU PNR-4S

£21.67

Bulk pricing available for quantities of 2 units or more

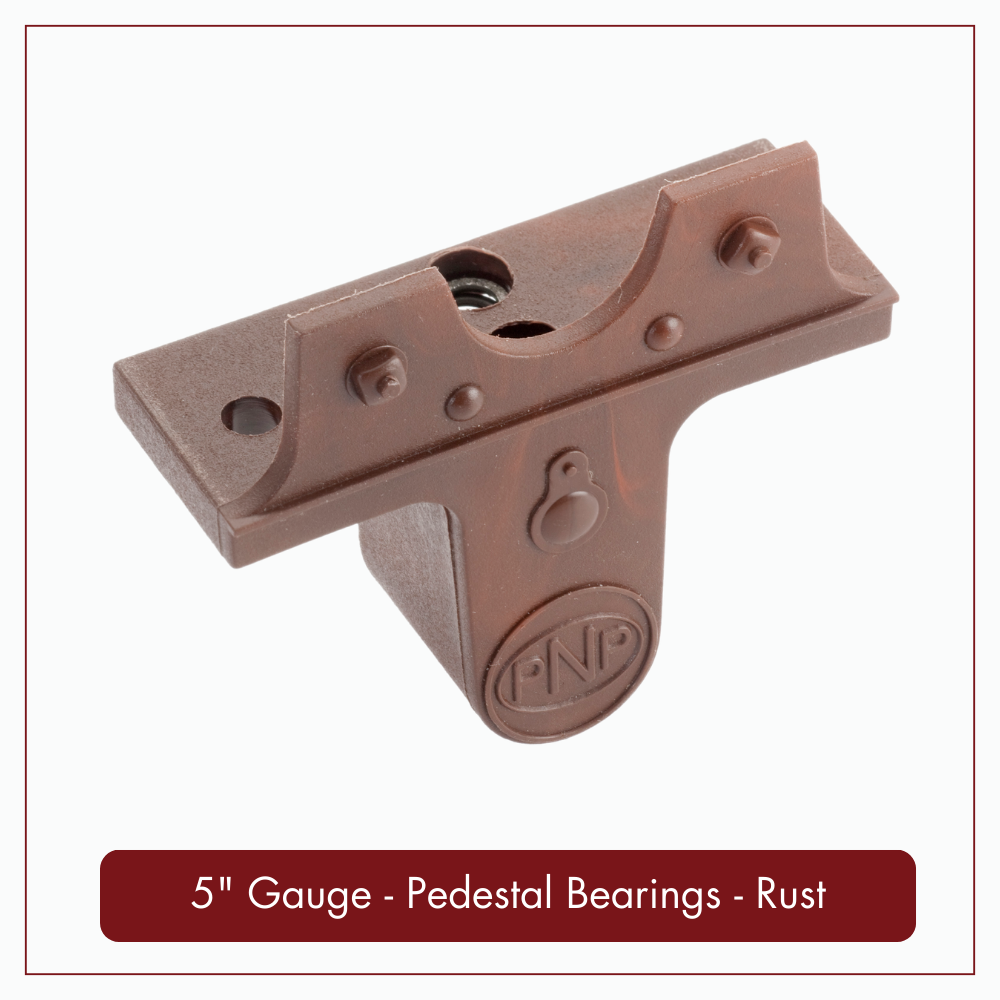

5" Narrow Gauge Pedestal Bearings - Rust - Set of 4

5" Narrow Gauge Pedestal Bearings - Black - Set of 4

In stock: 49 available

Quantity:

Buy more, save more

Quantity	Price per item	Discount
2 items	£20.58	5% off

Save this product for later

5" Gauge Pedestal Bearings

Product Details

Brand: PNP Railways

The PNP Railways 5" Gauge Pedestal Bearings are nicely detailed with square headed bolts and oil hole cover. They are moulded in acetal and incorporate a sliding top half to the main bearing which rests on two sturdy concealed springs giving a smooth running sprung axle box.

The pedestals are designed to fit a chassis member of 20 mm wide by 25 to 40 mm deep, and a between chassis side member measurement of 170 mm.

They have been designed to be used in conjunction with 10 mm outside diameter polished axles, with a journal length of 44 mm from the inside (back) of the wheel, assuming back to back measurement is 119 mm. The ends of the axles should not have more than 1 to 1.5 mm end clearance, 2 to 3 mm total. The clearance must be no more than stated or the top-bearing shoe could move out of the pedestal body.

PLEASE NOTE: These items are not designed to be used for passenger carrying.

Available in Black or Rust.
