5" Gauge Driving Truck - 2 Wheel Coal Wagon
SKU PNR-7U
£512.50
Made to order- time 6 weeks
DRIVING TRUCKS
In stock
1
Save this product for later

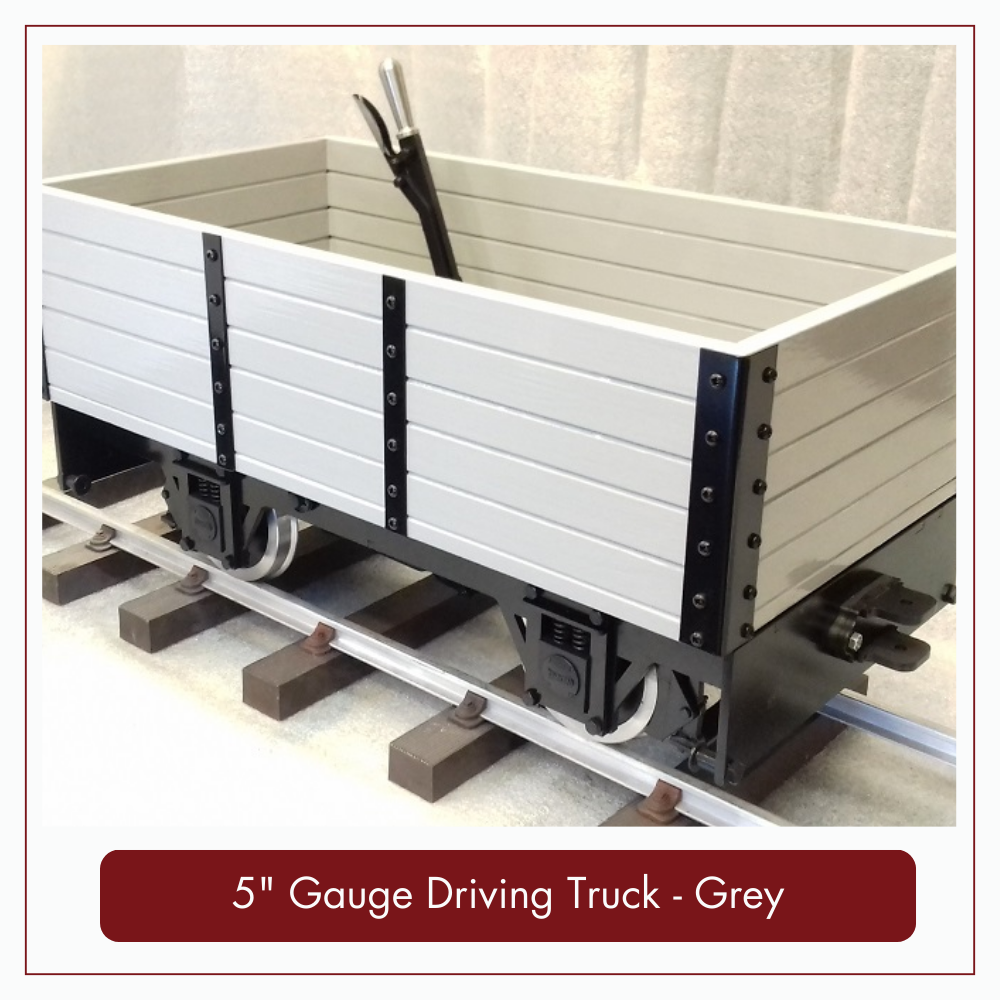

5" Gauge Driving Truck - 2 Wheel Coal Wagon
Product Details
5" Gauge Driving Truck - 4 Wheel Coal Wagon - Timber Body
- 520mm chassis
- 12mm birch plywood - plank effect on outside and in.
- Sprung suspension
- Adjustable hook in running boards (two positions)
- Sealed ball race bearings
- 5mm laser cut steel chassis
- Available in grey or brown stain
- Ratchet hand brake with shoe on every wheel (braked option)
Technical Details
- All welded steel chassis
- Ratchet hand brake with shoes to all wheels
- Minimum recommended radius 10' (3m)
- EN8 CNC machined wheels
- 8 springs for suspension
- Metal edged hook in foot boards - choice of two positions
- 12mm birch plywood body
- Planking effect to inside and out
- Available in gloss grey as standard
- Glass/plastic commercial brake shoes
- Composite foam seat (25 mm hard foam + 25 mm soft)

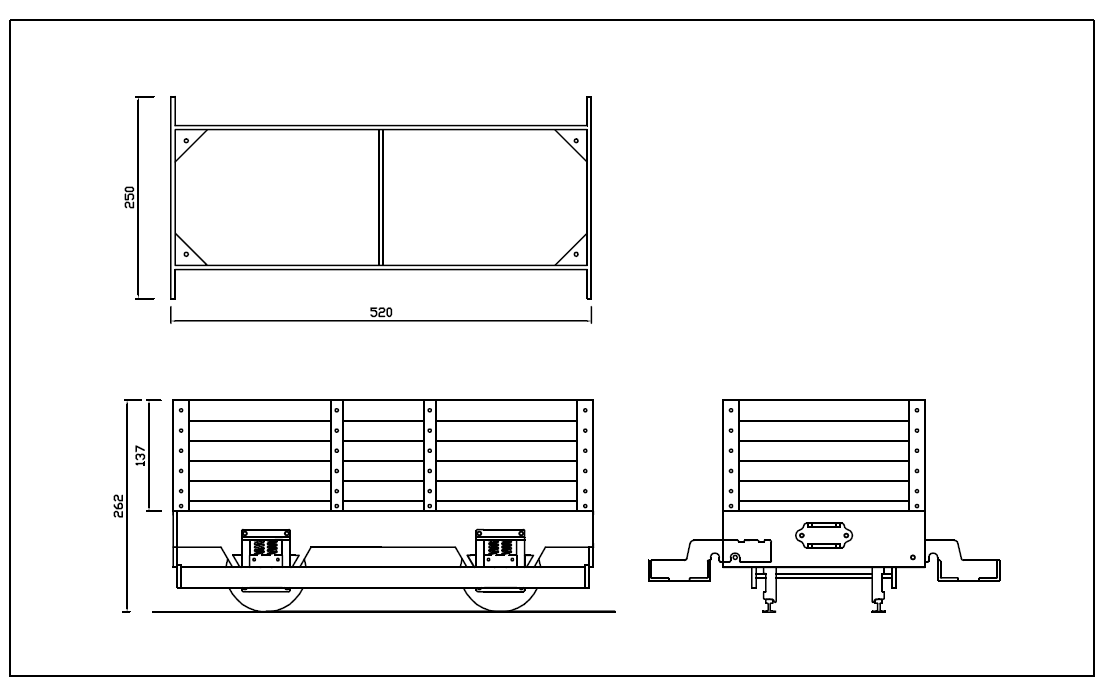

Dimensions
Chassis length 520 mm width 250 mm (20.5" x 10")
290mm (11.5") wheelbase
Top of seat to rail height 320 mm (13")
100mm (4") diameter wheels (over flange)
You May Also Like

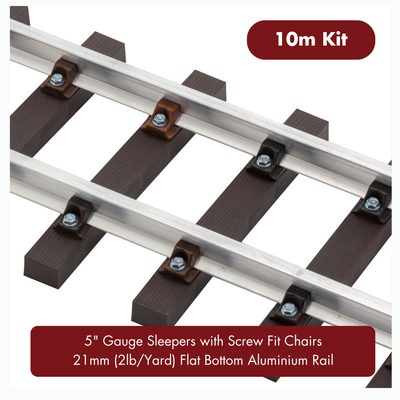

Bar Rail Chair - for 10mm x 20mm Bar Rail
